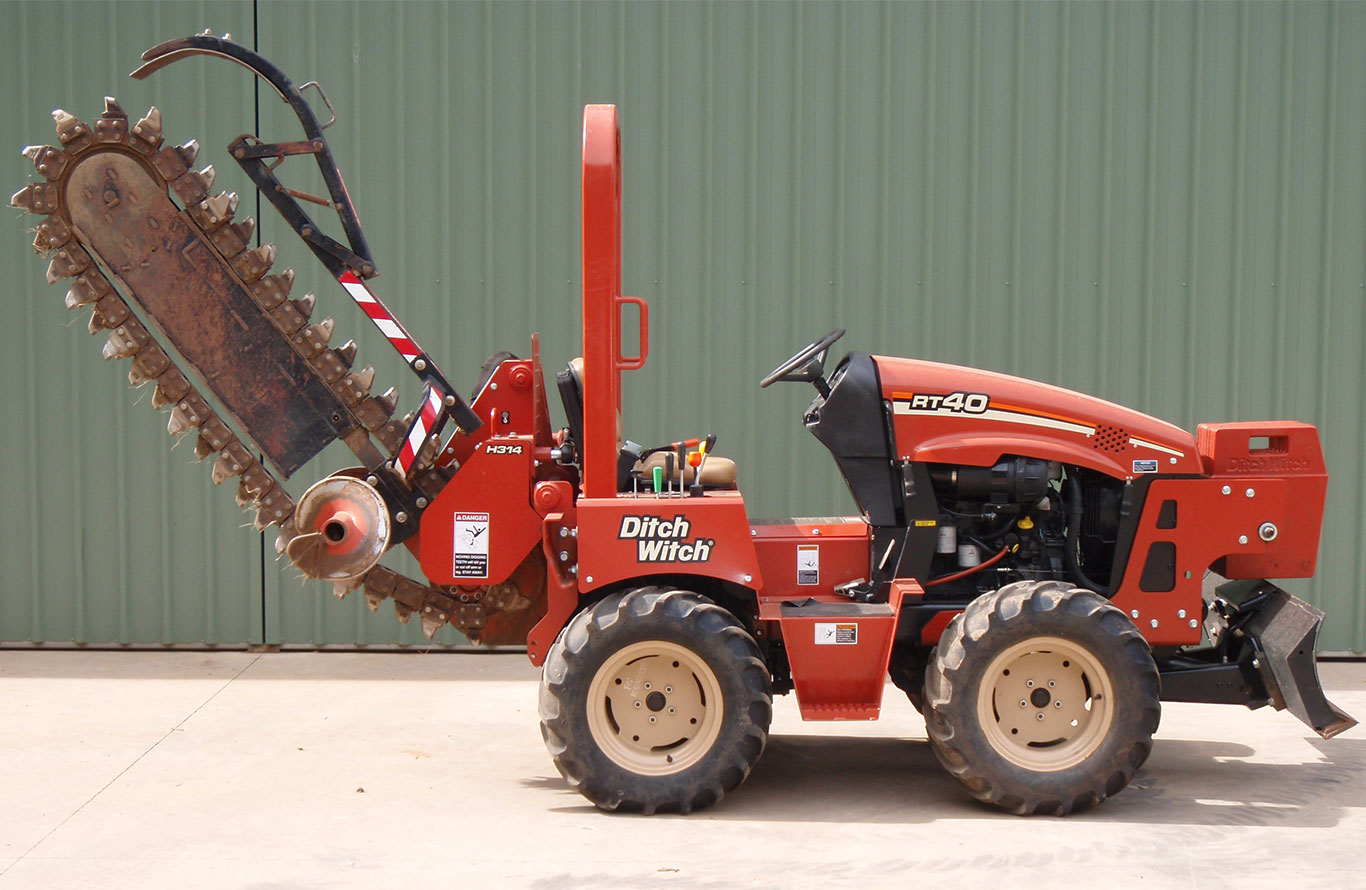

DITCH WITCH RIDE-ON TRENCHER

Trench Diggers
40 HP Range

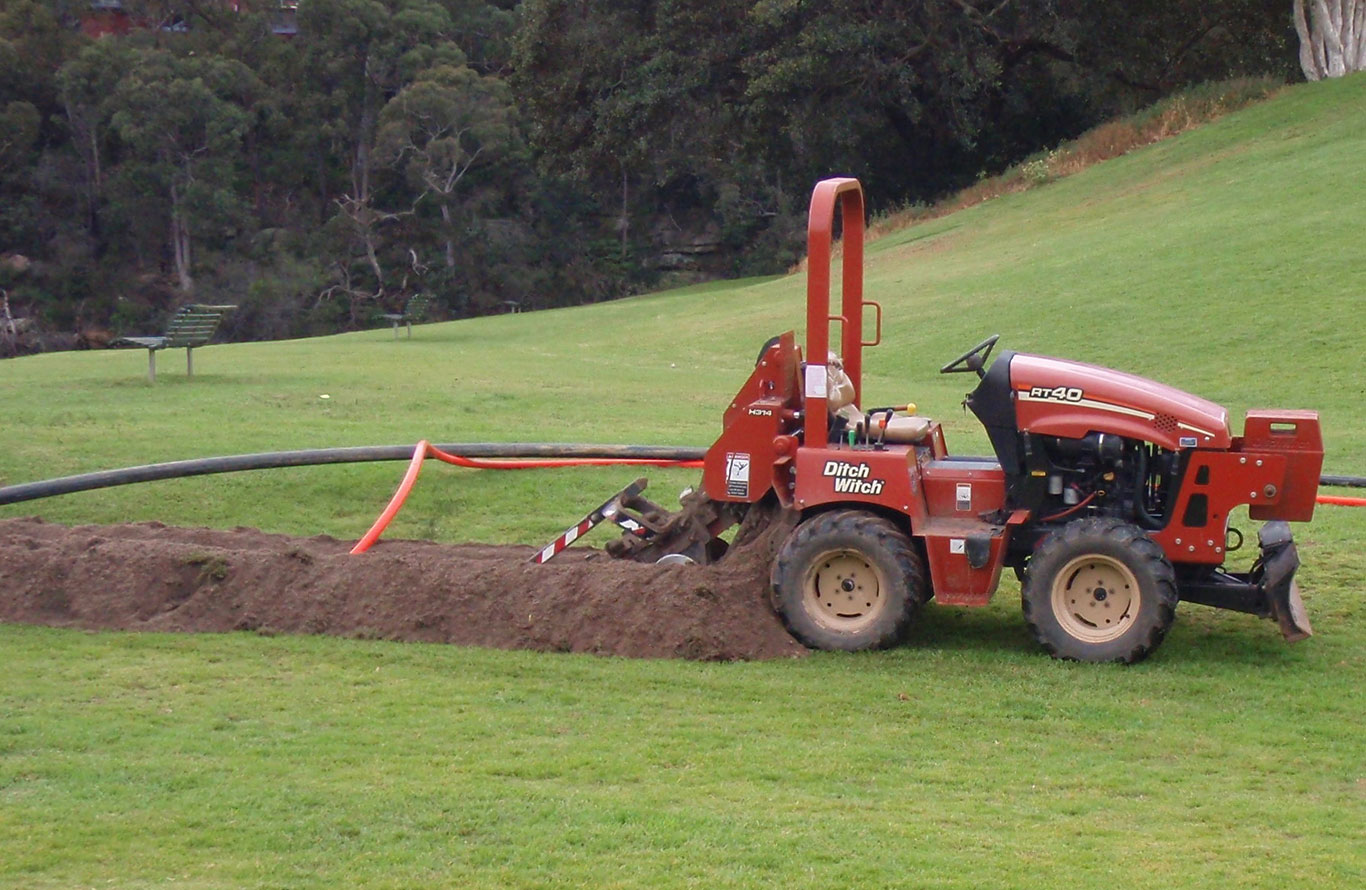

Our 40hp Ditch Witch trench diggers are popular for irrigation and electrical works. Faster than an excavator with a choice of various trench widths.

The 40hp trench digger is a perfect choice for your next tight access to medium sized trenching project. Equipped with four wheel steer and a side shift attachment.

DRY HIRE
WET HIRE
DAILY HIRE
LONG TERM HIRE

Specifications

  • Horsepower:
    40 HP
  • Steering:
    4 wheel steer
  • Machine Weight:
    2700 kgs
  • Machine Length:
    5000 mm
  • Machine Width:
    1480 mm
  • Machine Height:
    2200 mm
  • Trench Depth:
    Up to 1000 mm
  • Trench Widths:
    150 mm; 200 mm; 250 mm; 300 mm
  • Attachments:
    Side shift trenching attachment with front back-filling blade
  • Soil Placement:
    Distributed evenly on both sides

The Benefits of Trenching

  • A trencher digs 3 to 4 times faster than an excavator/backhoe with less mess.
  • Various size trench widths means you don't have to excavate any more than is required.
  • The spoil is excavated more finely with a trencher so the trench can be easily back-filled with better compaction.
  • As the spoil is much finer it can be suitable for the bedding of pipes and cables, etc.
